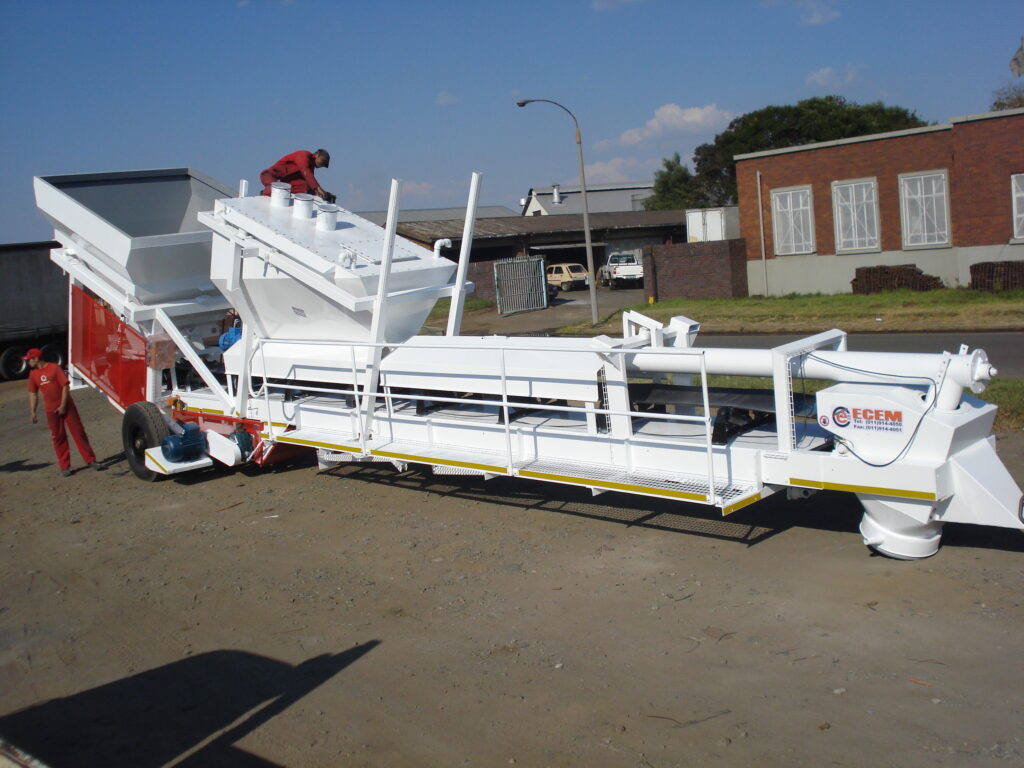

42m³ Mobile Ready Mix Plant

Capacity: 42m³ / hour (MAX)
Aggregate: 8m³ Hopper, 20000 Kg Load cells, Discharge gate (Pneumatic Cylinder)
Cement Weigh Batcher: 4500Kg Discharge, 3 x ULP Load cells (Pneumatic Cylinder), aeration / Vibrator
Belt Conveyor: 750mm Wide, Weather / dust proof covers
Electric Drive: 11 Kw Motor & Gearbox unit (FENNER), IP55
Electric Panel: Desk Type (Drawings supplied) Semi / Fully auto
Water weigh Batcher: 1200L (load cells ULP x 3), 100mm Actuator discharge valve
Water Pump: Electric, 4 Kw 380 V (Optional), IP55
Compressor: 5.5Kw, 380V, 270l Tank (FINI) IP55
Wheels & Axle: Optional. Fully roadworthy and licensed
Cement Silo: 100 Ton, Access ladder, filler pipe, hand railing, filtration unit, filler coupling, aeration, butterfly valve
Cement Screw Conveyor: 8 and 9m Long, 270 Diameter (+30Ton /H) IP55
